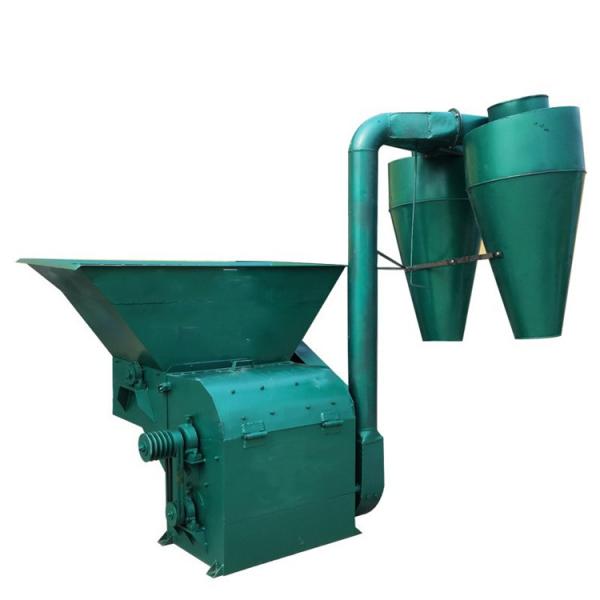

Corn Rice Husk Maize Grinding Grain Fodder Grinder Wood Hammer Mill
Machine Branch Crusher Machine
Wood shredder is a series of equipment for wood shredding. The
crusher has reasonable design, compact structure, safety,
durability and high production efficiency. The whole set of
equipment is driven by only one electric motor. It has low noise,
simple structure, compact layout, low price, stable work, low
energy consumption, high output, and sawdust. The finished product
has good quality and low processing cost.
| Model | Power(Kw) | | Capacity(Kg/h) | Rotate Speed | Weight(Kg) |
| 600 | 30 | | 1000-1500 | 3500 | 900 |
| 800 | 45 | 7.5 | 2000-2500 | 3500 | 1.5ton |
| 1000 | 55 | 11 | 3000-3500 | 3500 | 2ton |
| 1200 | 75 | 11 | 4000-4500 | 3500 | 2.6ton |
| 1500 | 55+55 | 11+11 | 5500-6000 | 3500 | 3.6ton |
This kind of Crusher Machine Hammer Mill is widely used in swine
farm, wood factory, etc. Grinder is equipped with high carbon steel
blade. The raw materials can be crushed into straw particles, whose
diameter is 3-5mm. The durable grain works with high efficiency and
gains more good reputation from European users.
Application:
1) grinding corn, wheat, soybean, rice, soybean meal.
2) Grinding corn straw, cotton Bar, peanut, weeds, branches and
other fiber rod-shaped material, after crushing fineness can reach
2 mm or less.
Working principle: The wood shredder adopts blade cutting and
high-speed air impact, and the double smashing function of
collision is integrated, and it can complete the fine material
sorting process at the same time. The wood is fed in from the feed
port. During the blade cutting and crushing process, the rotor
generates a high-speed airflow, which rotates with the blade
cutting direction. The material is accelerated in the airflow, and
repeated impacts cause the material to be double crushed at the
same time, which accelerates the crushing rate of the material and
achieves high speed. The steam flow is sent out.
Main purpose: The wood shredder integrates slicing and crushing. It
can cut branches and branches with a chip diameter of 1-30 cm. It
can crush wood into sawdust, sawdust, granules and flakes at one
time.
Equipment composition: The wood shredder is composed of a shaving
device, a shredding device and a fan blade.
Advantages of corn grain/straw/stalk/wood chips/tree branches and
forest waste hammer mill crusher grinder:
1. Building in rotor, grind the raw material with no dead angle,
finished products more even.
2. Operate button can be moved fully, it is easy to be operated.
3. In-built sealed avoid dust spill out, keep the working
environment tidy and clean.
4. May carry on the ordinary grinding, also may carry on the thin
grinding and the micro grinding. Thus it has been widely used in
the raw material grinding of the large and medium scale feed
factory, alcohol plant, food products factory and so on.
Our Machine adopt word-famous brand for the key electronic
elements, pneumatic and hydraulic system to ensure high quality and
reliable of the Agriculture machinery and feed machinery After the
unremitting efforts of all staffs , Mikim won the approval and
trust of the customers with the excellent performance , advanced
technology and good reputation.
