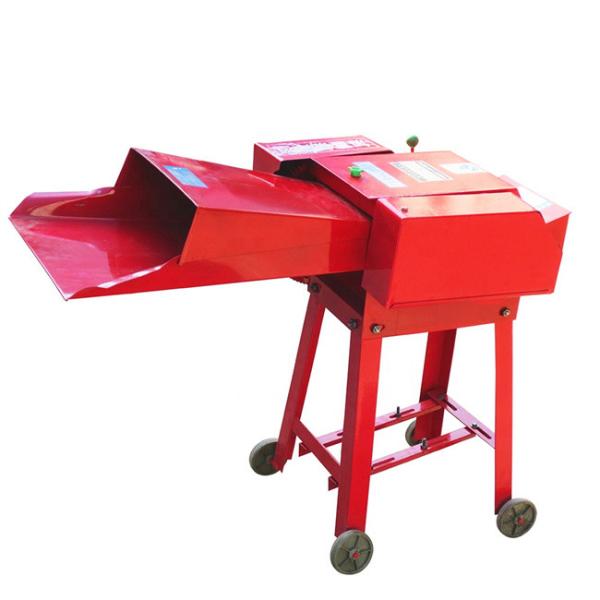

High Quality Animal Feed Processing Machine Small Chaff Cutter
This small chaff cutter machine is mainly used for cutting
micro-green, dried corn stalks and other forage crops, straw and so
on, the family farmed cattle, sheep, horses, deer and other live
stock, the ideal helper. It compact structure, small size, light
weight; with steel structure, safe, reliable, single-phase power,
easy to use, even long grass, and other characteristics suitable
for green or dry chaff.
mini chaff cutter machine is a mechanical device for cutting straw
or hay into small pieces before being mixed together with other
forage and fed to horses and cattle. This aids the animal's
digestion and prevents animals from rejecting any part of their
food.
| Item Name | Chaff Cutter |
| Model No. | 9ZP-0.4 |
| Capacity | 0.8-1.0tph |
| Matched Electric Motor Power | 2.2/3.0kw |
| Matched Diesel Engine Power | 4.0hp |
| Matched Gasoline Engine Power | 7.0HP |
| Voltage | 220v/Customized |
| Blades Quantity | 4pcs/6pcs |
| Suitable Raw Material for Processing | all kinds of grass, millet straw, rice straw, corn silage, wheat
stalk, corn plants, etc. |
| Cutting Length | 10/15mm |
| Spindle Speed | 1060r/min |
| Inlet Feeding Rollers Rotation Speed | 400r/min |
| Feeding Inlet Width | 235mm |
| Inlet Type | Automatic type or Manual type for your different choices |
| Main Machine Weight | 55kg (without driven engine ) |
| Overall Dimension | 1300(L)*1150(W)*800(H)mm |
| Packing Size | 600(L)*500(W)*390(H)mm |
| Electricity Consumption | 10 Kw.t/h |
Features of mini chaff cutter machine :
1.Steel frame, small in size, light weight, convenient to remove
2.Design with safety device, avoid chew knife accident, the machine
is safe and reliable.
3.Adopting advanced feeding provender device, unique
feedingprovender roller device (already obtained patent), the
automaticfeeding, conveying chain not winding grass, feed the grass
is smooth, High production efficiency
Application of chaff cutter
It is used for hoe, wet (dry) corn stalk, bean stalk, sweet potato
stalk, yellow bamboo grass, grass and other crops. The processed
materials are suitable for breeding cattle and sheep, deer horses
and other animals.
Our Machine adopt word-famous brand for the key electronic
elements, pneumatic and hydraulic system to ensure high quality and
reliable of the Agriculture machinery and feed machinery After the
unremitting efforts of all staffs , Mikim won the approval and
trust of the customers with the excellent performance , advanced
technology and good reputation.
FAQ
Q1: Are you a manufacturer or a trading company? We are a
professional manufacturer.
Q2: How do you control the products quality? Our machines are
authenticated by Ministry of Agriculture and Rural Affairs of PRC.
We set independent Quality Control Department to do sample
inspection, part inspection, trial running and pre-shipment
inspection
Q3:What will be the after-service term? Whole unit guarantee for 12
months after receiving. Free spare parts sending by air or courier
within 3 days if any failure caused by quality problem
Q4: Can I get some samples? A: Yes, sample order is available for
quality check and market test. But you have to pay the sample cost
and express cost.
Q5: What's the lead time? A: Accordingto the order quantity, small
order usually need 7-15 days, big order need negotiation.
